a) Instruct the OPERATOR to ensure that the FACE is unobstructed by hair, eyeglasses, and other objects because their presence will interfere with the ability of a SCREENING THERMOGRAPH to detect febrile condition.

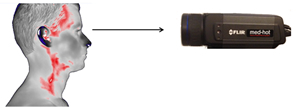

b) Disclose the recommended position of the FACE required to obtain the TARGET relative to the optical pathway of the SCREENING THERMOGRAPH;
Example: Position of the FACE relative to the lens of the infrared camera.
c) Recommend secondary screening with a clinical thermometer of any individual that the SCREENING THERMOGRAPH indicates is possibly febrile.
201.7.9.3.101 SCREENING THERMOGRAPH
a) A reference to ISO/TR 80600, Medical Electrical Equipment - Deployment, implementation and operational guidelines for identifying febrile humans using a screening thermograph, (the guidance document for the appliction of SCREENING THERMOGRAPH), upon its publication;
b) A recommendation that the relative humidity in the area of screening should be maintained below 50% and temperature below 24°C to achieve the INTENDED USE and an explanation of the effects of elevated humidty and ambient temperature on the temperature reading caused by sweating.
Other Individual Screening Features
- Option to record an ID# or name for archiving
- Quick save button with quick return to live screen
- Instant capture at maximum temperature with audio alarm
- Saved Images can be opened for review
Individual Screening
- We recommend an individual screening to make a more definitive determination of true fever.

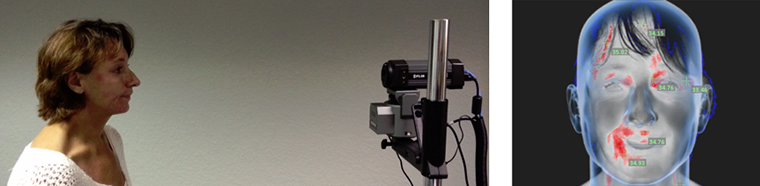

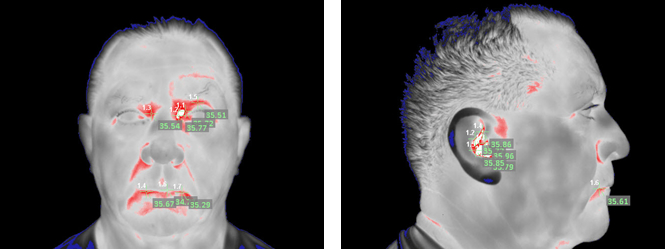

- Include one or two images: (1) anterior view to measure inner canthus of the eyes or (2) anterior and lateral view to record eyes and the ear canal.
Recommendation:
1 view to measure the eyes
-OR-
2 views as seen above to measure the eyes and the ear canal for the most accurate temperature.

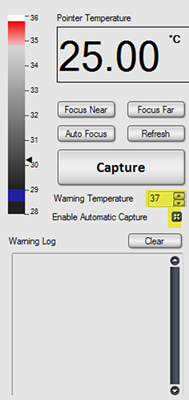

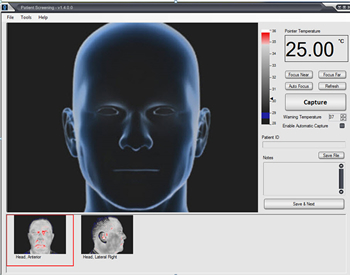

On-screen Recommended Positioning
|
|
| |
This Screen displays:
- Adjustable warning temperature,
- Place for an identifying name or number for documentation,
- Enable automatic capture when the temperature threshold is displayed,
- Thumbnail tray of saved images,
- Save key for archiving which automatically returns to live feed to save time, and
- Space for notes.
|

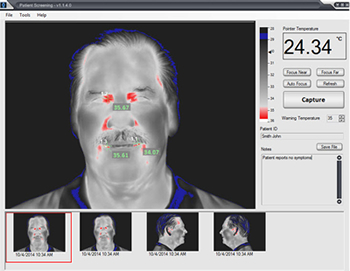

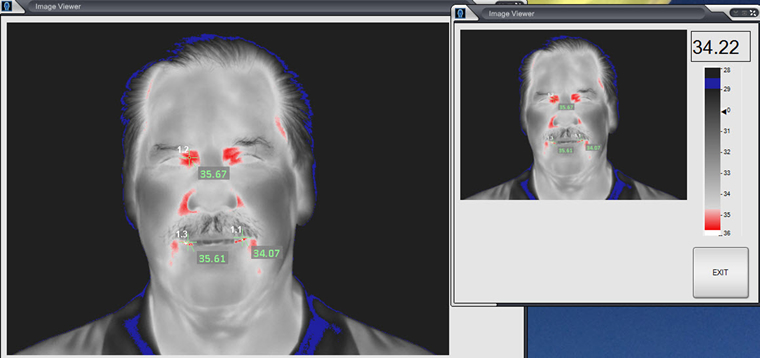

Review Captured and Saved Images
A separate window will open and the screen can be resized to view multiple images on the screen at once. The view will include the temperature measurements.

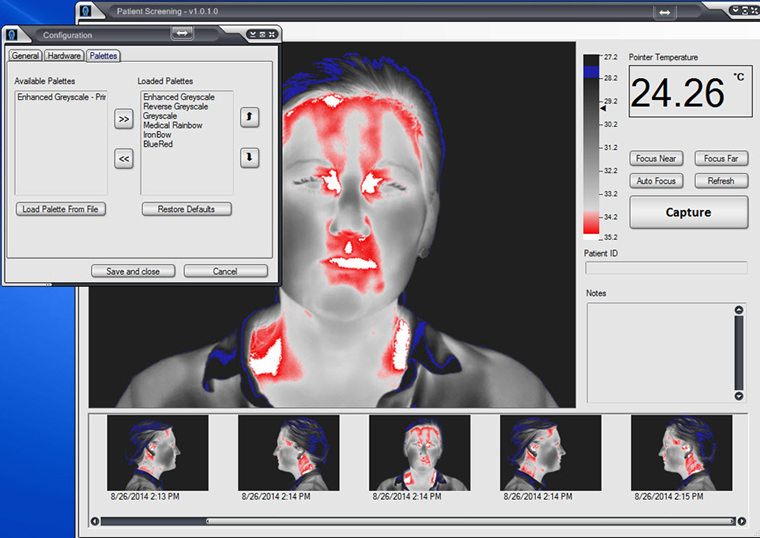

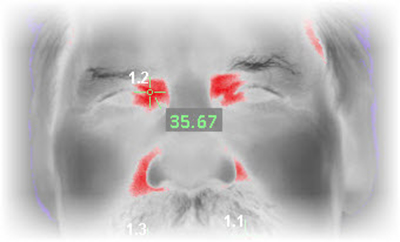

Select the Preferred Palette
Default Palette is
Enhanced Grayscale (red is hot and white is hottest)
Other Individual Screening Features
- Option to record an ID# or name for archiving
- Quick save button with quick return to live screen
- Instant capture at maximum temperature with audio alarm
- Saved Images can be opened for review
Quality
With more than a decade of experience in medical thermography and the purchase of hundreds of thermography devices from small thermography manufacturers, we have come to appreciate the benefits of partnering with industry leaders offering proven, world-class technology. Our clients rely on their thermography cameras for daily income and deserve the best and most reliable devices.
Extreme quality control
- Professional, reliable support
- Timely implementation of up-to-the minute technological innovations
- Built-in radiometric technology
- Investment protection with name-brand technology
Infrared technology has been evolving rapidly over the last few years. While some companies are unwilling to invest in innovation and continue to offer dated technology and software applications, Energetic Health Systems has taken the industry lead in offering the highest quality thermography cameras available, thoughtfully designed innovative software, and accessories at the best prices in the market. You can count on Energetic Health Systems to lead the way.
Protect your investment with a fully integrated professional Medical Thermography System. Arrange for a live online demonstration today and see for yourself!
Download our manual
|
|
|
|
|
|
|
